How Does A Compression Valve Work? (Explained Simply)

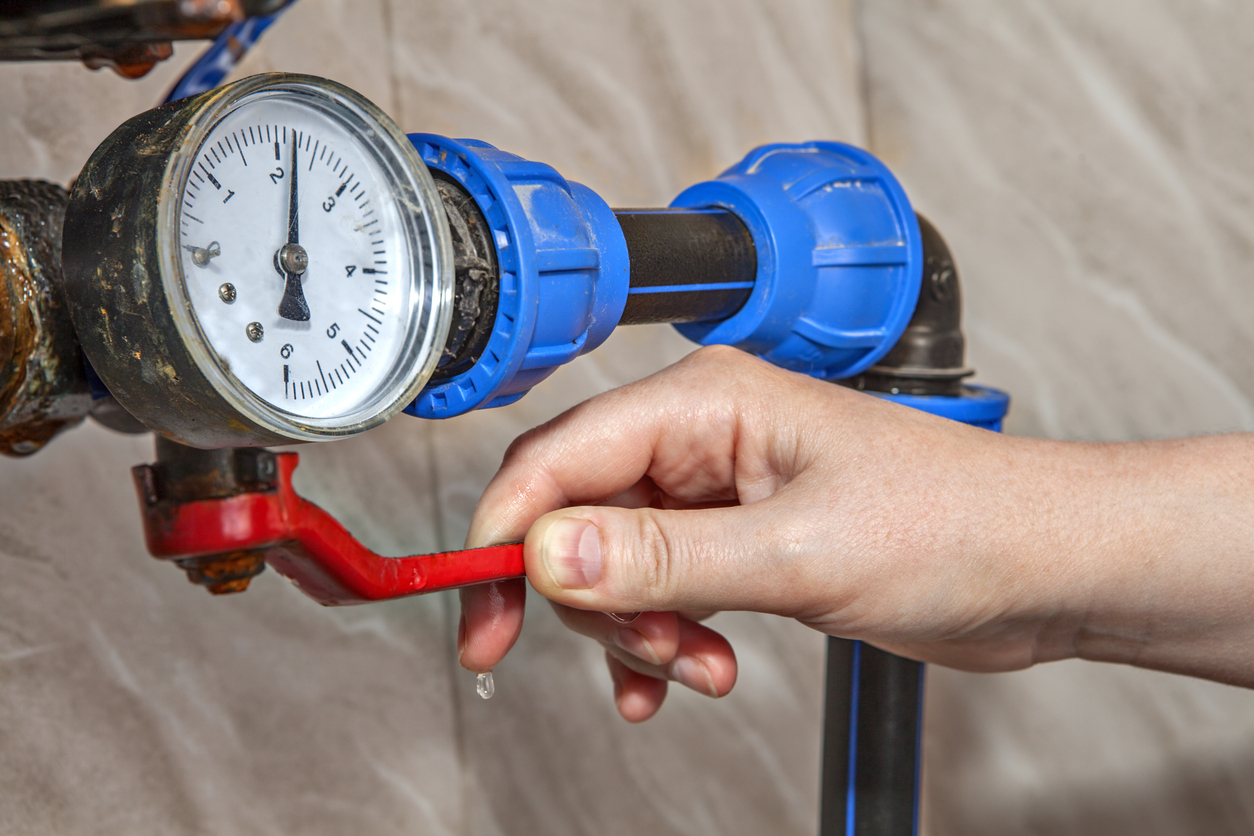

At 7:45 a.m., the school’s maintenance radio crackled to life. “Jim, we’ve got water dripping from a valve in the boiler room again.” Sound familiar? Leaky valves might seem minor, but they can waste thousands of gallons of water and spike utility bills. The compression valve is a humble yet ingenious device at the heart of many reliable fluid control systems.

These industrial plumbing systems are workhorses everywhere, from school bathrooms to hospital heating systems. But what makes them so dependable? The answer lies in their brilliantly simple design, which hasn’t changed much since its invention because it just works.

This guide explains compression valves in simple engineering terms, helping maintenance pros better understand these essential components. It explains precisely how compression valves work without introducing complex engineering concepts. We’ll explore what happens inside when you turn the handle and share practical maintenance tips to keep your valves operating smoothly for years.

Inside a Compression Valve: The Nuts and Bolts

Think of a compression valve as a reliable bouncer at a nightclub—it controls what gets in and what stays out. The magic happens when you turn the handle, but let’s first examine the key parts that make it work.

The Main Players

The compression valve’s team consists of four essential parts working together:

1. The valve body serves as the primary housing – picture it as the foundation of a house
2. A stem runs through the center, similar to a door handle’s shaft
3. The packing nut acts like a collar around the stem
4. An O-ring or ferrule (a unique rubber or metal ring) sits inside, ready to create the seal

How It All Comes Together

When you turn the handle, you’re not just opening and closing a path for water or air. You’re orchestrating a precise mechanical dance. The stem pushes down as you tighten the handle, squeezing the O-ring or ferrule against the valve body. This compression creates a tight seal—much like pressing your thumb firmly over the end of a garden hose.

Ever tightened a screw into wood and watched it pull two boards together? That’s similar to how a compression valve creates its seal. The tighter you turn the handle (within reason), the stronger the seal becomes.

This simple yet effective design explains why compression valves remain popular in schools, hospitals, and industrial settings. They’re straightforward to maintain and, when properly cared for, provide years of reliable service.

Picking the Right Tool for the Job: Types of Compression Valves

You wouldn’t use a sledgehammer to hang a picture frame; the same principle applies to compression valves. Different jobs require various types, and knowing which can save you time and prevent headaches.

The Reliable Brass Valve

Brass compression valves stand as the go-to choice for water systems. They resist corrosion, handle temperature changes well, and won’t break the bank. You’ll spot these golden-colored workhorses under sinks, behind toilets, and throughout water supply lines. They’re perfect for locations where you need regular maintenance access.

The Tough Guy: Stainless Steel

When dealing with harsh chemicals or extreme temperatures, stainless steel compression valves approach the plate. They cost more than brass, but they earn their keep in industrial settings, food processing areas, and anywhere that demands extra durability. Think of them as the heavy-duty work boots of the valve world – they might be overkill for basic water lines, but they’re invaluable in demanding environments.

Valve Varieties by Function

The angle valve changes the flow direction by 90 degrees – perfect for tight spaces where you must redirect flow. Globe valves, meanwhile, excel at controlling flow rates. You’ll reach for them when you need precise control over how much fluid passes through, like in heating systems where balanced flow matters.

Remember this rule of thumb: Match the valve to the job’s demands. Brass will work fine for water lines. Stainless steel is better for harsh chemicals or high temperatures. Consider a globe valve if you need to control flow precisely.

Keep Them Running Smooth: Essential Valve Maintenance

A well-maintained compression valve can serve faithfully for decades. But like any hardworking piece of equipment, it needs regular attention. Let’s break down how to spot trouble early and keep your valves in prime condition.

Spotting the Warning Signs

Your valves talk to you – you just need to know what to listen for. A stiff handle that’s getting harder to turn often signals mineral buildup or worn packing. Moisture around the stem usually means the packing needs attention. That steady drip-drip-drip from the outlet? It might be time for a new seal.

Quick Fixes for Common Problems

When you notice a leak around the stem, start with the simplest solution: slightly tighten the packing nut. Use a wrench and give it a quarter turn – just enough to snug it up. If the leaking continues, you’re probably looking at worn packing that needs replacement.

For stubborn handles, first check for calcium buildup, especially in hard water areas. A 50-50 mix of white vinegar and water can work wonders. Let it soak for an hour, then try the handle again. Still stuck? The stem might need lubrication or replacement.

The Maintenance Gameplan

Mark your calendar for these basic maintenance steps:

• Every three months: Give each valve a complete turn (open to close and back) to prevent sticking
• Twice yearly: Check packing nuts for proper tightness
• Annually: Inspect for corrosion and clean any mineral deposits
• Every five years: Consider preventive packing replacement in critical systems

Making the Right Choice: Valve Selection Made Simple

Choosing the correct compression valve doesn’t require an engineering degree. Focus on these key factors to make solid decisions that’ll save you headaches.

Know Your Flow

First, consider what’s flowing through the valve. For example, what are the water lines in a school? A basic brass compression valve handles that job perfectly. But if you’re dealing with boiler systems or industrial chemicals, you’ll want to use stainless steel or specialized materials.

Size Matters

Using a valve that’s too small creates unnecessary pressure and wear. Too large, and you’ll waste money and space. Here’s a practical tip: Match the valve size to your pipe size. If you’re replacing an existing valve, the size is usually stamped right on the body—when in doubt, take the old one with you to the supply house.

When to Call in the Experts

Some situations call for extra expertise. If you’re working with:

• High-pressure systems above 125 PSI
• Temperatures over 180°F
• Hazardous materials
• Critical safety systems

These scenarios warrant a conversation with your supplier or manufacturer rep. Making a phone call is better than dealing with a failure later.

Wrapping It Up: Your Compression Valve Companion

Every day, countless compression valves quietly work in buildings across the country. They control water flow to drinking fountains, regulate steam in heating systems, and keep industrial processes running smoothly. Understanding how these reliable workhorses function makes every maintenance task easier and more effective.

While compression valves aren’t cutting-edge technology, their time-tested design proves its worth in modern facilities. Their simplicity, reliability, and ease of maintenance explain why they remain the go-to choice for so many applications. Whether troubleshooting a leak or planning a system upgrade, this knowledge helps you make informed decisions.

Ready to tackle your next valve project? Remember, Everlasting Valves stands prepared to help. Explore our website to explore our full range of compression valves, or contact our expert team for personalized guidance on choosing the correct valve for your specific needs.
